ST107Whole Machine Type ion Air Curtain Machine

time:2022-04-14 08:13source :思帝克科技 author :STICKON click : next
Product features: 1.Drum-type blades provide wind power and neutralize static electricity quickly 2.Ion airflow covers a large area 3.Built-in static eliminator 4.Infrared induction full-automatic air outlet (must be equipped separately) 5.The whole machine has good grounding protection Technical parameter Input voltage AC110V~220V 50 / 60HZ Capacity 110VA Output voltage 5.6KV Ionic equilibrium Under 100V (when leaving the factory) Air quantity 2650CFM Ozone generation Under 0.004ppm (distance 150mm) Work environment Ambient temperature: 0 ~ 40℃, ambient humidity: 15~85%RH (no condensation)




Product features:


1. Drum-type blades provide wind power and neutralize static electricity quickly

2. Ion airflow covers a large area

3. Built-in static eliminator

4. Infrared induction full-automatic air outlet (must be equipped separately)

5. The whole machine has good grounding protection

Technical parameter

Input voltage AC110V~220V     50 / 60HZ
Capacity 110VA
Output voltage 5.6KV
Ionic equilibrium Under ±100V (when leaving the factory)
Air quantity 2650CFM
Ozone generation Under 0.004ppm (distance 150mm)
Work environment Ambient temperature: 0 ~ 40℃, ambient humidity: 15~85%RH (no condensation)
Filter Without
Output signal Without
Main body size 600/900/1200/1500/1800/1900mm(L) × 235mm (W) × 230mm (H)
Weight 14.4 kg
Noise 66dB(A) (distance 1m)
Sheathing material Iron
Appendix Operating instructions, test reports, certificates and warranty cards

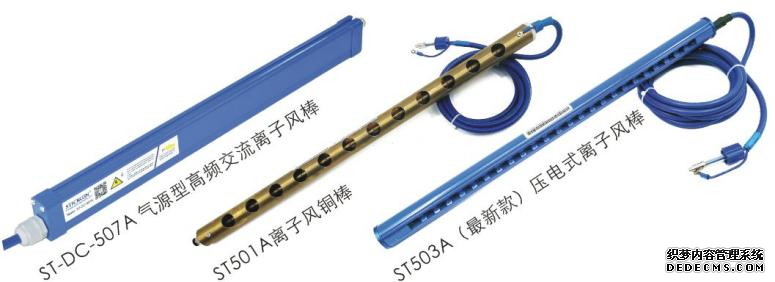

Attachment ST501A ion wind copper rod, ST503A (latest model) piezoelectric ion wind rod, ST-DC-507A air source high frequency AC ion wind rod

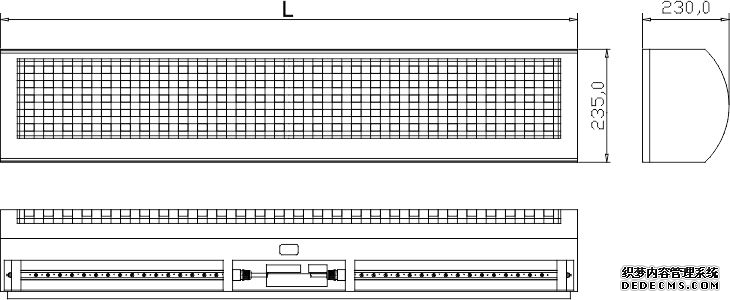

Product size


Product accessories
